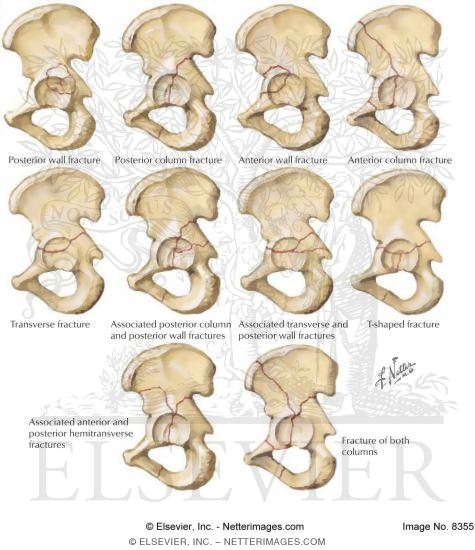

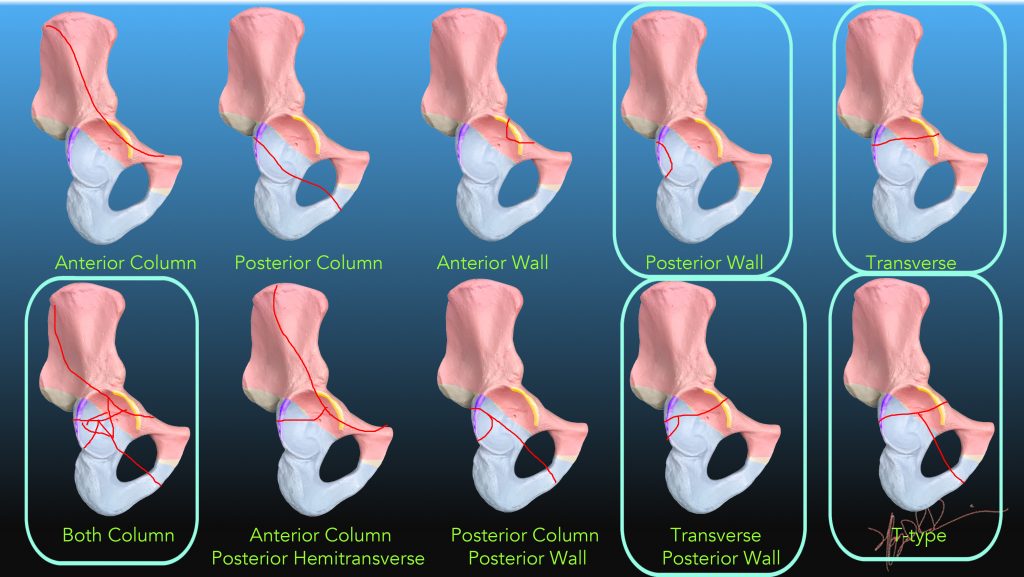

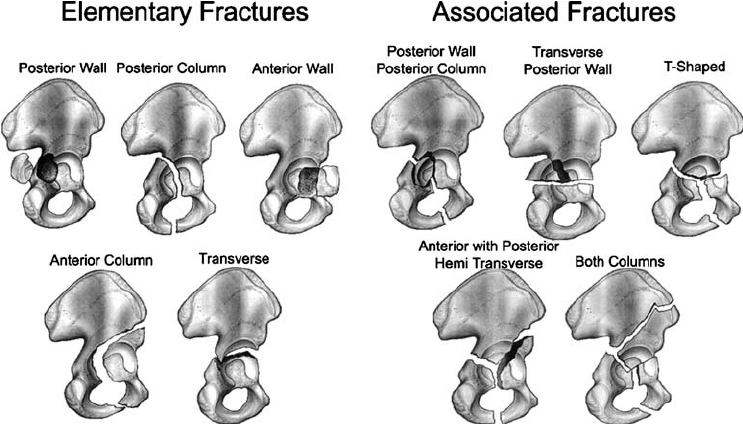

[전문] 비구 골절 (acetabulum fracture)의 분류 중요합니다.

Fx Type / 영상소견	Obturator ring Fx	Ilioischial line disrupted	Iliopectineal line disrupted	Iliac wing Fx	Posterior wall Fx	Spur Sign
Both column	Yes	Yes	Yes	Yes	No	Yes
Ant. column	Yes	No	Yes	Yes	No	No
Post. column	Yes	Yes	No	No	Yes	No
Post. column c post. wall	Yes	Yes	No	No	Yes	No
T shaped	Yes	Yes	Yes	No	No	No
Transverse c post. wall	No	Yes	Yes	No	Yes	No
Transverse	No	Yes	Yes	No	No	No
Post. wall	No	No	No	No	Yes	No
Ant. wall	No	No	Yes	No	No	No
Ant column c posterior hemi transverse	Yes	Yes	Yes	Yes	No	No

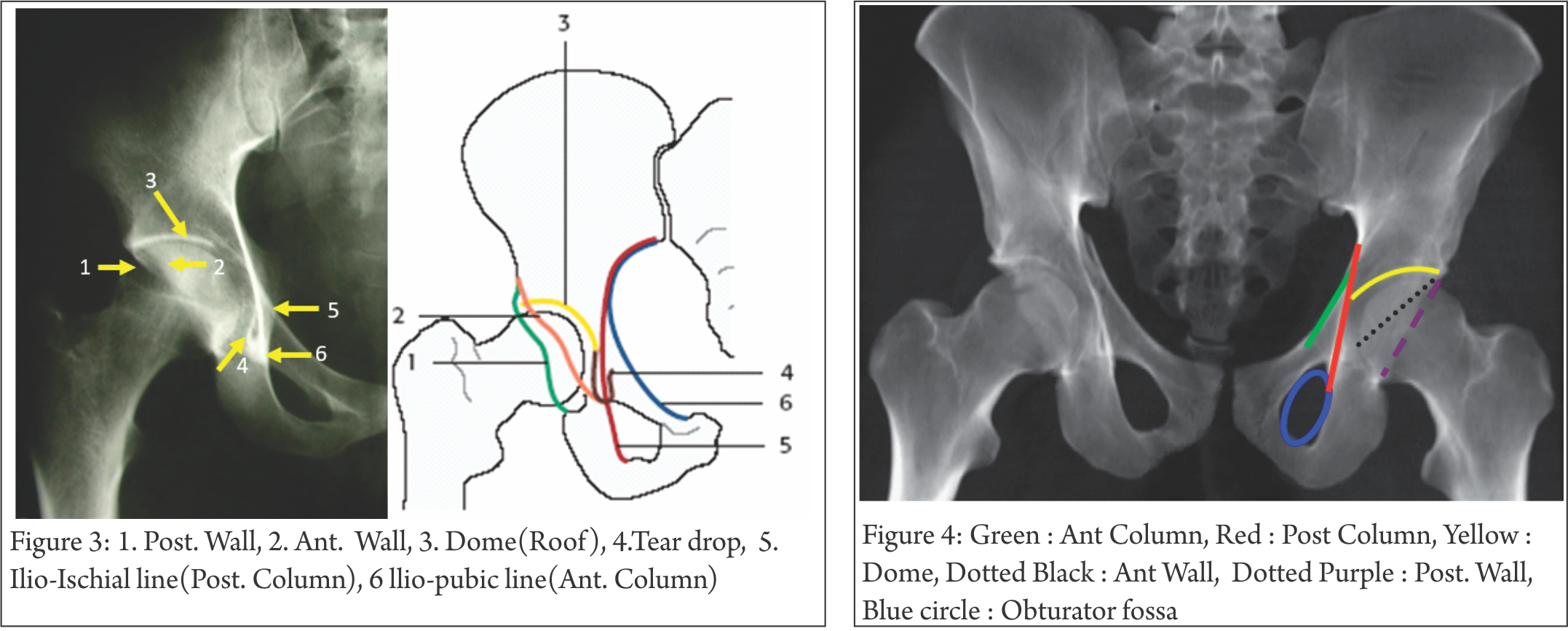

Obturator ring 은 column or T shaped Fx

Ilioischial lines 은 posterior column, T shaped, Transverse

Iliopectineal line 은 anterior column, T shpaed, Transverse

Iliac wing Fx 은 ant column fracture

posterior wall Fx 는 말그대로 post wall 만

Spur sign 은 both column fracture 에만 관찰가능 (internal oblique view = obturator view)

도움이 되시길 바랍니다 : )
